Description

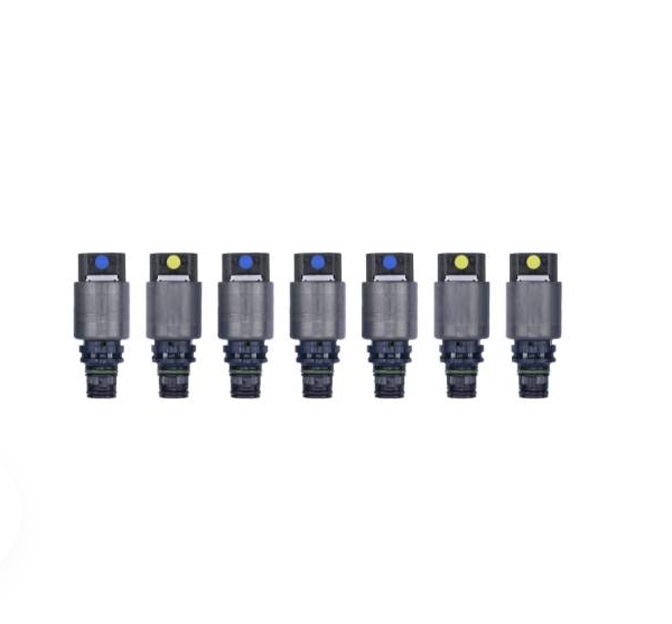

Manufactured by ZF Friedrichshafen AG, the world’s leading developer of advanced driveline and chassis technologies, the Genuine ZF 7-Piece Automatic Transmission Control Solenoid Set is the definitive OEM replacement solution for servicing ZF 6HP-series transmission valve bodies (Mechatronics). Operating as the precise electro-hydraulic actuators that translate electrical signals from the Transmission Control Module (TCM) into proportional fluid pressure, these highly sensitive solenoids directly control clutch engagement, line pressure modulation, and torque converter lockup. Over time, contaminated ATF, thermal degradation, and mechanical coil fatigue cause solenoid sticky valve operation, leading to harsh gear engagement, delayed shifts, slipping, and transmission default codes (Limp Mode). Replacing the entire 7-piece solenoid cluster restores factory-smooth shift timing, stabilizes internal hydraulic line pressure, and extends the service life of your transmission’s delicate mechanical clutch packs.
Technical Parameters
| Category | Specifications & Technical Details |
| High-Frequency Pulse-Width Modulation & Proportional Pressure Regulation | This solenoid valve set includes high-precision PWM (pulse-width modulation) proportional solenoid valves and on/off switching solenoid valves. They precisely fine-tune hydraulic circuit pressure within milliseconds according to TCM electronic commands, ensuring smooth clutch engagement without shock, completely resolving shift impact and RPM flare. |
| High-Temperature Coated Copper Coils & Low-Hysteresis Magnetic Core | The internal coils utilize top-grade enameled copper wire rated for 200°C high temperature, paired with low-hysteresis high-permeability alloy valve cores. Even under long-term high-temperature, high-pressure extreme operating conditions, coil resistance remains stable, and actuation response never sticks or delays. |
| Micron-Polished Spool Valve & Debris-Tolerant Micro-Passages | The internal spool valve surface undergoes micron-level super-finishing, equipped with precision internal anti-contamination micro-passages. It effectively resists fine metal dust and gum suspended in ATF fluid, preventing spool sticking and hydraulic pressure loss. |
| OEM Color-Coded Calibration & Resistance Matching | The 7-piece solenoid valve set adopts ZF official standard color codes (such as yellow / blue / black groups, corresponding to different pressure characteristic curves). Each solenoid valve undergoes extremely high-precision hydraulic and resistance-flow calibration before leaving the factory, ensuring direct matching with the original Mechatronics unit for seamless flash-free installation. |
| Integrated High-Temperature Viton/FKM Elastomeric O-Rings | Each solenoid valve port edge is pre-fitted with high-grade Viton (fluoroelastomer) three-dimensional sealing rings. They possess exceptional oil resistance, acid-alkali resistance, and compression permanent deformation resistance. Under continuous high-pressure pulse oil flow erosion, they remain tightly fitted to the Mechatronic valve body, eliminating internal cross-pressure leakage at the solenoid valve base. |
Applicable Car Brands & Models
Typical symptoms of failing or clogged ZF 6HP solenoids include:
Harsh Downshift Clunk: A violent bang or shudder when slowing down, particularly during 2-to-1 or 3-to-2 downshifts.
Gear Slippage / Shift Flare: The engine RPM surges momentarily between gear changes (e.g., 2nd to 3rd gear) before the next gear engages.
Transmission Limp Mode: The onboard computer triggers transmission error codes (such as pressure control solenoid faults) and locks the vehicle into 3rd gear.
Delayed Gear Engagement: Taking several seconds to engage Drive (D) or Reverse (R) from Park (P) when the engine is cold.
ZF 6HP solenoid sets are color-coded based on the generation of the Mechatronics unit and the hydraulic circuit design (Gen1vs.Gen2/M-shift vs. E-shift). You must check the color of your original solenoids or cross-reference the 10-digit ZF transmission main list number (stamped on the transmission casing tag) before purchasing. Mixing different colored solenoid sets will cause severe shift timing errors.
Yes, strongly recommended. When servicing the solenoids, the Mechatronics unit is already removed. Replacing the rubber bridge seal adapter, sealing sleeves (mechatronic sleeve), and the internal valve body separator plate (gasket) at the same time is standard professional procedure. This eliminates internal fluid pressure loss and prevents future leaks.
Re-programming is generally not required if you install the exact color-coded solenoid match. However, it is mandatory to perform a “Transmission Adaptation Reset” using a professional diagnostic tool (such as ISTA, VCDS, or Autel). Resetting the adaptations clears old learned clutch filling times and allows the TCM to adapt to the fluid pressure parameters of the new solenoids.
