Description

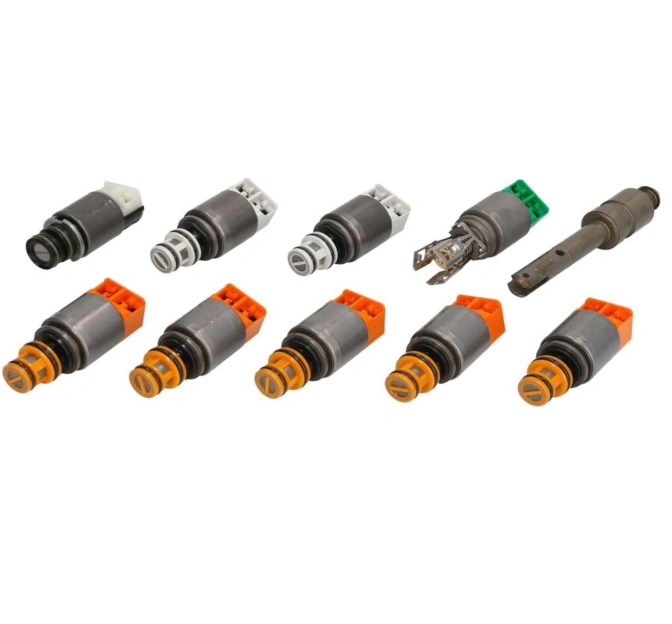

Manufactured by ZF Friedrichshafen AG, the global authority in powertrain engineering, the Genuine ZF 9-Piece Automatic Transmission Valve Body Solenoid Set with Integrated Control Valve provides a complete, factory-calibrated electro-hydraulic replacement solution for 8HP and 9HP transmission Mechatronics. Designed to translate electronic Transmission Control Module (TCM) commands into precise line pressure, this master 9-piece kit includes a full complement of color-coded proportional pressure solenoids alongside dedicated mechanical parking-lock/neutral shift control valves. Over high mileage, contaminated ATF, thermal fatigue, and solenoid coil degradation lead to sticky valve operation, causing harsh downshift clunks, gear slipping, engagement delays, and limp-home fault codes. Replacing your failing actuators with this genuine 9-piece ZF solenoid kit restores original shifting smoothness, stabilizes internal line pressure, and protects expensive clutch drum assemblies without replacing the entire Mechatronics unit.
Technical Parameters
| Category | Specifications & Technical Details |
| 9-Piece Master Architecture with Parking-Lock Valve | Contains 8 groups of high-precision PWM proportional pressure regulation solenoid valves and 1 group of parking lock / neutral valve. A one-stop restoration of all control nodes in the Mechatronics electro-hydraulic valve body. |
| OEM Color-Coded Calibration & Resistance Matching | Solenoid valves strictly adopt ZF standard color codes (such as orange, white, green, black color blocks). Micron-level hydraulic flow and electrical resistance calibration is completed before leaving the factory, ensuring 100% matching with the original vehicle TCM control logic. |
| Micron-Polished Spool Valve & Debris-Tolerant Micro-Passages | The spool valve core surface undergoes super-finishing and has a built-in micro filter screen. It effectively resists metal particles and gum suspended in ATF fluid, preventing spool sticking and hydraulic circuit internal leakage. |
| High-Temperature Coated Coils & Low-Hysteresis Core | The internal coils utilize 200°C high-temperature resistant enameled copper wire and low-hysteresis alloy valve cores. Under continuous high-heat harsh operating conditions, coil resistance remains stable, and actuation response never delays or sticks. |
| Integrated High-Temperature Viton/FKM Elastomeric O-Rings | The valve body ports come pre-fitted with high-grade Viton fluoroelastomer sealing rings. They possess oil corrosion resistance and compression deformation resistance. Under high-pressure pulse oil flow erosion, they remain tightly fitted, eliminating internal cross-pressure leakage. |
Applicable Car Brands & Models
The 9-piece solenoid set is specifically engineered for ZF 8HP and select 9HP transmissions, incorporating additional proportional pressure solenoids and a dedicated mechanical control valve for electronic parking-lock and neutral functions. Earlier 6HP systems used 7-piece configurations, so selecting the correct piece count for your transmission generation is critical.
Typical failure symptoms include:
Harsh Downshift Clunk: A violent bang or shudder when slowing down, particularly during 3-to-2 or 2-to-1 downshifts.
Gear Slippage / Shift Flare: The engine RPM surges momentarily between gear changes before the next gear engages.
Transmission Limp Mode: The vehicle locked in a protection gear with pressure control solenoid fault codes stored in the TCM.
Delayed Engagement: Taking several seconds to engage Drive (D) or Reverse (R) from Park (P).
ECU re-flashing is usually not required as long as you match the exact color-coded set for your transmission model. However, performing a Transmission Adaptation Reset using a diagnostic scanner (such as ISTA, Autel, or VCDS) is mandatory to allow the TCM to clear old learned pressure values and adapt to the new solenoids.
Replacing the 9-piece solenoid set directly inside your existing valve body restores 100% of factory hydraulic performance for a fraction of the cost of a complete new Mechatronics unit. Furthermore, it retains your vehicle’s original coded Transmission Control Module (TCM), avoiding expensive dealer coding fees.
