Description

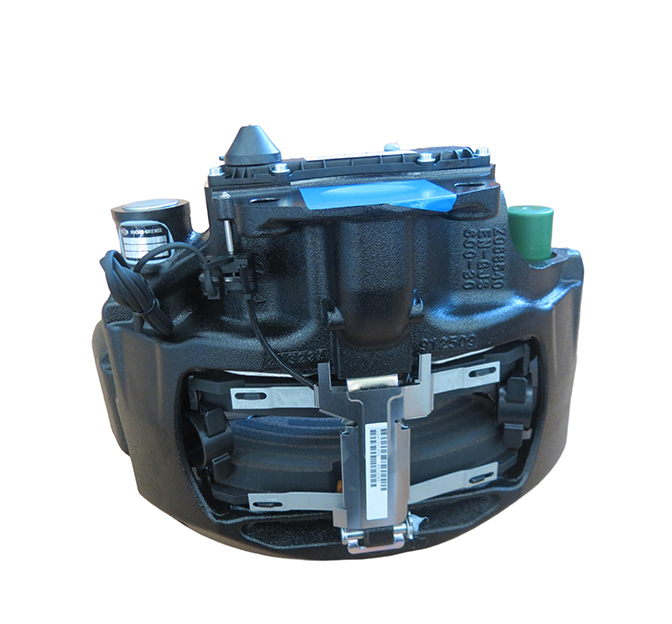

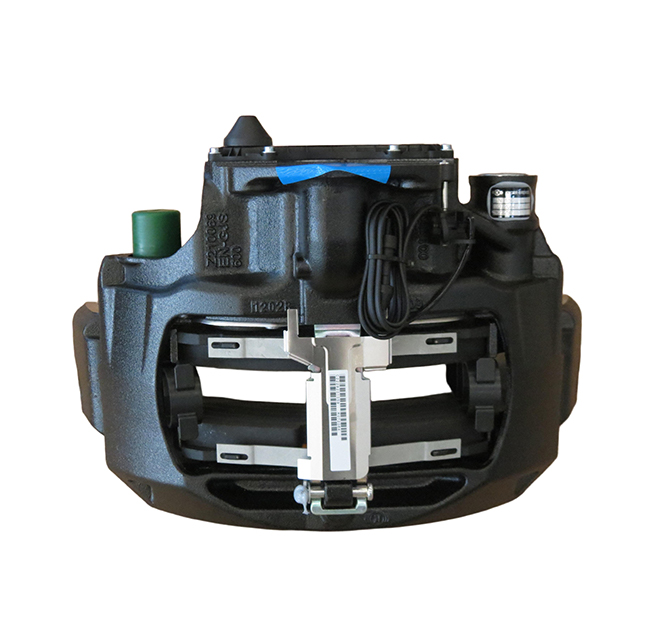

Upgrade your heavy commercial fleet with maximum stopping security and exceptional durability using the Heavy Duty Commercial Vehicle Air Disc Brake Caliper Assembly. Designed explicitly to handle massive payload demands on long-haul tractors, heavy dump trucks, and multi-axle freight trailers, this robust caliper assembly delivers unrelenting clamping force under extreme operating conditions. Worn slide pins, seized internal tappets, and corroded housing structures severely compromise braking efficiency, leading to hazardous stopping distances and expensive maintenance downtime. This premium replacement caliper assembly solves those fleet issues directly. It utilizes high-grade ductile cast iron, precision-machined internal guide mechanisms, and high-temperature elastomeric seals to provide rapid pneumatic actuation, ensure uniform pad-to-rotor contact, and withstand severe highway and off-road abuse.
Technical Parameters
| Category | Specifications & Technical Details |
| Heavy-Duty High-Rigidity Pneumatic Clamping Force | We optimize the internal lever and piston force-multiplying geometry to convert incoming compressed air into powerful disc friction force. As a result, this caliper meets the short-distance emergency braking demands of fully loaded, large-tonnage vehicles. |
| High-Thermal-Stability Thick-Wall Nodular Cast Iron Housing | We cast the caliper body from heavy-duty high-strength nodular cast iron. This greatly improves overall structural rigidity and thermal conductivity. Moreover, it effectively prevents structural deformation and thermal fade caused by high-intensity continuous braking. |
| Dual-Sealed Self-Cleaning Floating Guide System | We equip the caliper with precision-machined guide pins and double-lip high-temperature dust boots. Consequently, it maintains smooth axial sliding under the high-frequency torsion and bouncing of multi-axle vehicles. Meanwhile, it completely blocks mud, de-icing salt, and road moisture intrusion. |
| Integrated Maintenance-Free Automatic Wear Compensation | We integrate a high-precision internal automatic adjustment mechanism. It steplessly compensates working clearance as brake pads naturally wear. Therefore, brake pedal travel stays highly consistent throughout the entire friction pad service life. |
| All-Weather Salt-Spray & Extreme Temperature Composite Defense | We develop this caliper for extreme environments from -40°C cold to +900°C high temperature. Additionally, the surface carries a multi-layer anti-corrosion and anti-oxidation coating. As a result, it perfectly resists corrosion and wear under harsh road conditions. |
Applicable Car Brands & Models
Common warning symptoms include:
Vehicle Pulling to One Side During Braking: The heavy truck or trailer pulls heavily left or right due to a seized, stuck, or sluggish caliper piston.
Brake Drag or Overheated Wheel Hubs: The brake pad fails to retract completely after pedal release, resulting in continuous friction, burning smell, and extremely hot wheel rims.
Significantly Reduced Braking Efficiency: A noticeable loss in overall stopping power, requiring much higher pedal effort and extended stopping distances.
Visible Air Leaks or Boot Damage: Hissing sounds around the pneumatic interface or torn guide pin boots packed with road debris and rust.
While official service repair kits (such as guide pin kits, boot sets, and seal mechanisms) are available for minor routine maintenance, complete caliper assembly replacement is strongly recommended if the main cast iron housing is cracked, heavily corroded, or if internal guide bores are structurally scored.
Yes, absolutely. After installing a new caliper assembly, technicians must manually verify running clearance, test the pneumatic system for air leaks using soapy water, and conduct a road or brake-roller test to ensure proper braking balance across the axle.
Each caliper assembly is bolted securely to a custom-molded industrial wooden or heavy corrugated cardboard base, wrapped in anti-corrosion VCI barrier film, and fitted with heavy-duty port plugs to protect precision machined surfaces and threads during global transit.
