Description
Control harsh road impacts and eliminate unmanageable chassis sway across your commercial fleet with the genuine SACHS Heavy Duty Commercial Vehicle Pin Mount Shock Absorber. Engineered specifically for heavy commercial truck steering axles, rear drive suspensions, transit bus chassis, and multi-axle freight trailers utilizing stud/pin mounting brackets, this OE-grade hydraulic shock absorber dampens intense vertical kinetic energy. Internal valve fatigue, hydraulic oil aeration, scored piston rods, or fluid leakage cause excessive body lean during cornering, uneven tire cupping, harsh suspension bottoming, and loss of braking traction. This original SACHS pin mount shock absorber solves those ride-control failures directly. It features a micro-smooth chrome-plated piston rod, multi-lip VITON oil seals, all-weather hydraulic damping fluid, and pre-assembled heavy-duty rubber mounting grommets with steel washers to deliver linear damping response, superior heat dissipation, and uncompromised transport reliability.
Technical Parameters
| Category | Specifications & Technical Details |
| Pin-to-Pin / Stud-Mount Heavy Architecture | We build both ends with standard high-strength pin mount structures. They come pre-installed at the factory with double-tapered high-density rubber eyelet bushings and galvanized metal washers. These components precisely center on the frame bracket mounting holes. As a result, lateral sway is prevented. |
| Micro-Polished Hard-Chrome Plated Piston Rod | We machine the piston rod from high-strength medium-carbon steel, then apply high-frequency induction hardening and hard chrome plating. We polish the surface to extremely low roughness. It offers extremely high tensile strength, effectively resists flying stone impact, and extends seal ring life. |
| Heavy-Duty Twin-Tube Hydraulic Architecture | We adopt a large-bore twin-tube working cylinder design, filled with anti-foaming full-synthetic hydraulic damping oil. It delivers a large oil volume and excellent heat dissipation. As a result, it never produces thermal fade during long-distance high-speed and heavy-load driving. |
| Multi-Lip High-Temperature Oil Seal Assembly | We equip high-pressure-resistant FKM / VITON multi-lip seal rings with an integrated self-cleaning dust lip. They effectively prevent external mud and dust intrusion. Moreover, they completely eliminate shock absorber oil leakage failure. |
| SACHS Velocity-Sensitive Valving | We build in a multi-layer precision spring valve disc stack. It automatically adjusts oil passage area according to road bump frequency (high-speed micro-vibration or low-speed large undulation). Therefore, it balances quiet highway driving with strong damping on potholed roads. |
Applicable Car Brands & Models
Common warning symptoms include:
Visible Hydraulic Oil Leaks: Wet hydraulic fluid coating the outer body casing or dripping onto mounting brackets.
Rattling or Clunking From Mounts: Loud metallic knocking sounds near frame brackets caused by squished or deteriorated rubber grommets on the pin ends.
Excessive Body Roll: The truck cab or frame sways violently during cornering or dips nose-down under braking.
Uneven Tire Cupping: Wavy, scalloped wear patches across tire treads caused by wheels bouncing uncontrollably off the pavement.
Premature failure is typically caused by over-tightening the pin mounting nuts during installation (crushing rubber grommets beyond their elastic limit), flying gravel scoring the exposed chrome piston rod, or continuous overloading beyond rated GCW limits.

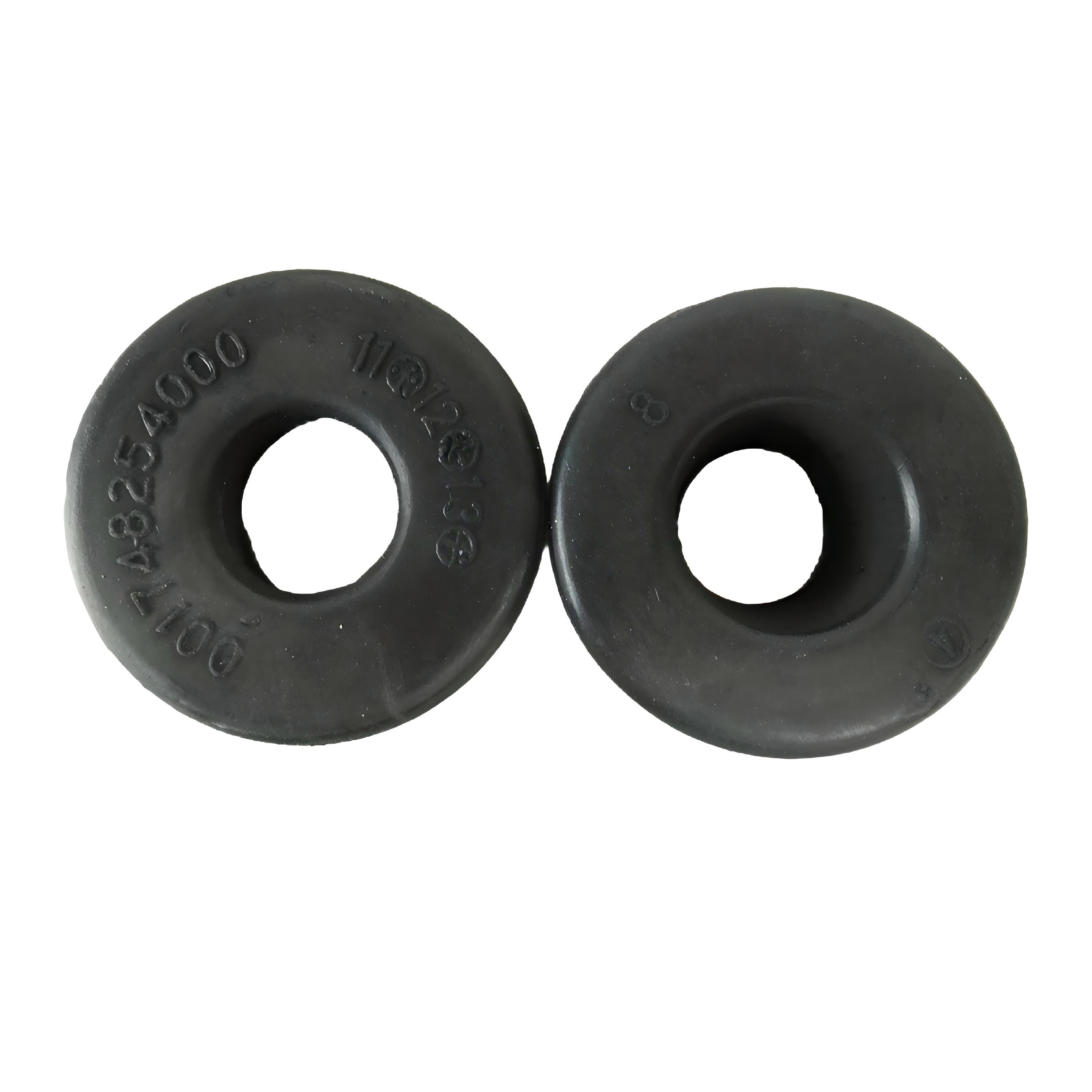

Yes. New SACHS pin mount shock absorbers come pre-fitted with fresh OE-spec rubber grommets and steel washers. Reusing old, compressed grommets causes mounting alignment play, severe vibration, and premature failure of the new shock absorber.
Our 1-year warranty covers all hydraulic fluid seal leakage, piston rod fracture, internal valving failure, mounting rubber grommet cracking, and manufacturing defects under normal operating conditions. If a shock absorber fails within 12 months, we provide prompt replacement or warranty processing upon inspection.
