Description

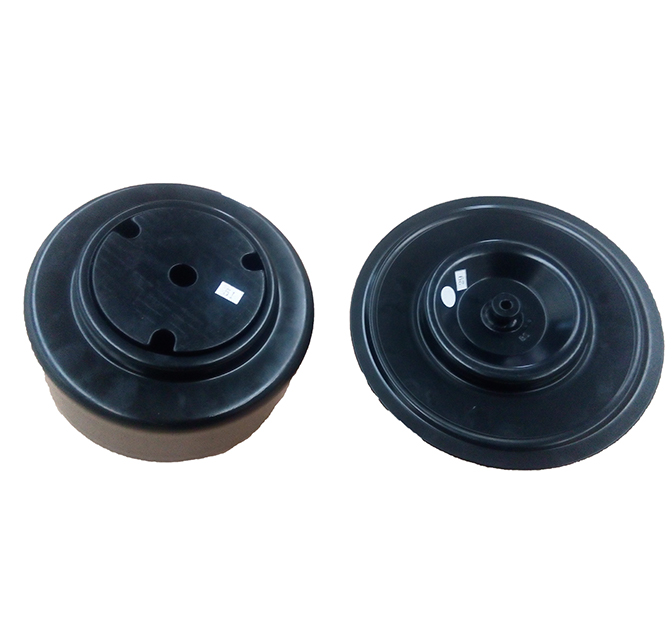

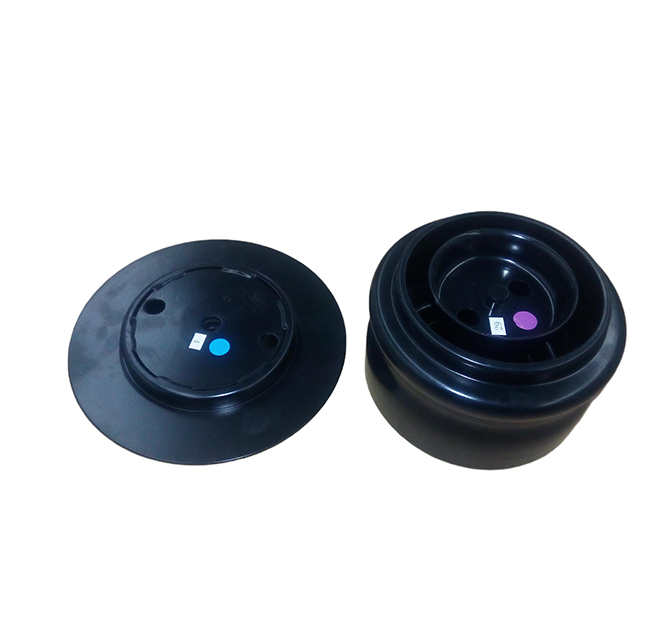

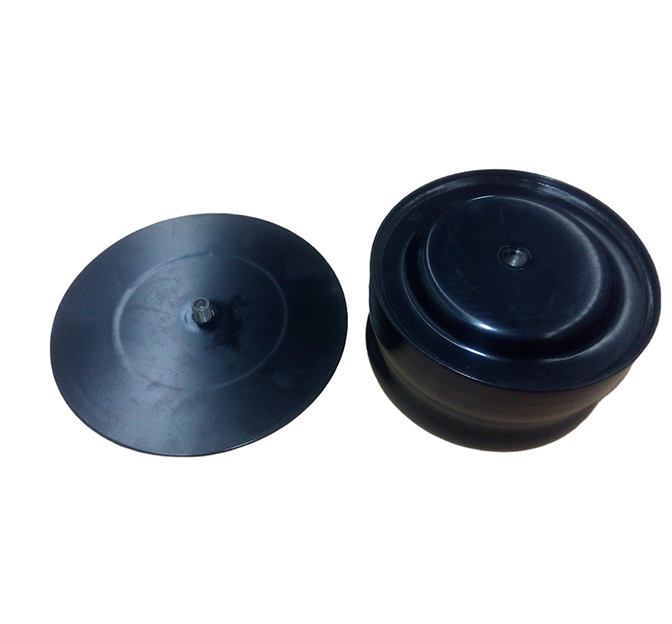

Ensure precise suspension geometry and reliable load support for your commercial fleet with the genuine Vibracoustic Air Spring Piston and Top Plate Assembly. Engineered specifically for heavy commercial transport trucks, multi-axle freight trailers, and luxury coaches, this professional-grade metal-and-composite assembly provides the rigid structural foundation and rolling contour required for high-performance air springs. Substandard or corroded top plates and deformed pistons cause air leakage, misaligned suspension geometry, and catastrophic bellow blowouts under heavy highway loads. This original Vibracoustic assembly solves those failures directly. It utilizes high-strength stamped steel, precision-cast aluminum, and corrosion-resistant coatings to deliver optimal spring rate characteristics, withstand extreme structural loads, and maximize the operational lifespan of your commercial transport suspensions.
Technical Parameters
| Category | Specifications & Technical Details |
| High-Strength Aluminum & Stamped Steel Construction | We combine a high-strength stamped carbon steel top cover with a precision-cast aluminum alloy piston base. As a result, this design greatly reduces unsprung weight while delivering outstanding torsional and bending rigidity. |
| Optimized Piston Contour & Non-Linear Spring Rate | We apply a precision piston outer edge geometric profile design. Consequently, the air spring delivers a perfectly progressive stiffness curve during compression. Moreover, this greatly improves ride comfort in both empty and fully loaded conditions. |
| High-Pressure Fatigue-Resistant Sealing Interface | We equip the air spring with a precision-machined rubber bellows compression groove and sealing edge. Therefore, it maintains absolute airtightness under high-frequency dynamic air pressure impact. Notably, it never suffers bead unseating or air leakage. |
| Industrial Anti-Corrosion & Road Salt Protection | We apply a thick electrophoretic anti-rust coating or specialty anti-corrosion paint to the metal surface. As a result, it perfectly resists metal erosion caused by road de-icing salt, mud impact, and continuous humid environments. |
| OE-Grade Geometric Tolerance & Precise Mounting | We build all bolt hole spacing, air inlet positions, and center locating shafts strictly to WABCO OEM manufacturing standards. Consequently, this ensures damage-free quick installation during axle suspension overhaul. |
Applicable Car Brands & Models
Common warning symptoms include:
Severe Metal Corrosion or Rust Perforation: Heavy flaking, deep pitting, or rust holes on the steel top plate or aluminum piston from road salt exposure.
Piston Physical Deformation or Cracking: Cracks or dents on the piston body caused by bottoming out against the axle under heavy overloads.
Persistent Air Leaks Around Sealing Edges: Air bubbles escaping where the rubber bellow clamps onto the top plate or piston flange.
Suspension Misalignment: The truck or trailer sags unevenly because a damaged top plate has shifted the mounting angle.
It depends entirely on their condition. If the metal top plate and piston show no signs of structural corrosion, warping, or cracking, they can be cleaned and reused. However, if deep rust or mechanical distortion is present, replacing the complete assembly is strongly recommended to prevent premature failure of the new rubber bellow.
Vibracoustic is a global tier-one OEM supplier specializing in advanced NVH (Noise, Vibration, and Harshness) and air suspension solutions. Their components are engineered to exact original equipment tolerances, ensuring superior fatigue strength, precise load handling, and long-term durability in demanding commercial fleets.
Each piston and top plate assembly is coated with a protective anti-corrosion film, secured with custom shock-absorbing inserts, and packed inside a heavy-duty industrial corrugated box to prevent transit damage and moisture exposure during global distribution.
