Description

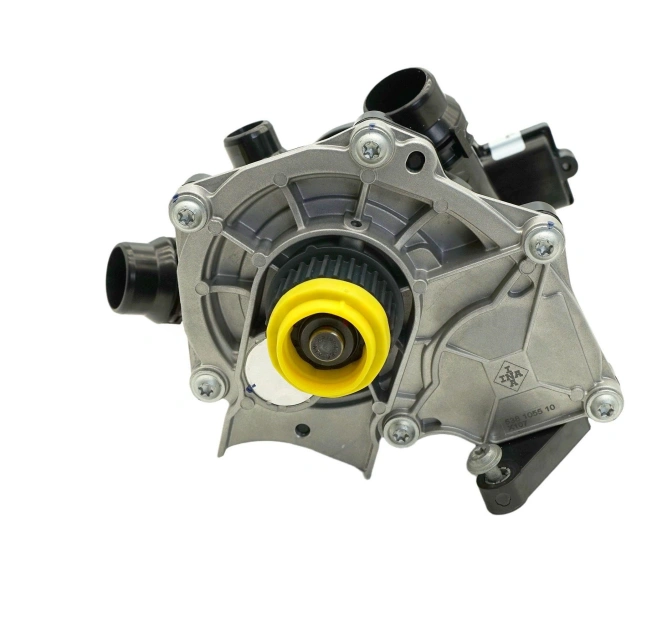

Engineered by Schaeffler Group, the INA Engine Coolant Water Pump with Thermostat Assembly is a fully integrated, high-precision thermal management module designed to regulate engine operating temperatures with absolute reliability. By combining a heavy-duty coolant pump with a precision-calibrated thermostat housing into a single factory-tested unit, this assembly eliminates coolant leaks, prevents engine overheating, and drastically reduces installation labor. Operating as the heart of the engine cooling system, it dynamically controls coolant circulation based on real-time thermal load, helping modern powertrains reach optimal working temperature faster while reducing fuel consumption and cold-start emissions. Featuring a corrosion-resistant housing, high-flow composite or alloy impeller, and premium silicon-carbide mechanical face seals, each INA assembly is built to withstand extreme pressure and vibration. It is the premier OE-spec solution for professional repair shops, engine specialists, and international auto parts distributors servicing modern European and global vehicles.
Technical Parameters
| Category | Specifications & Technical Details |
| Integrated Dual-Function Housing & Leak-Proof Design | Integrates a high-efficiency mechanical water pump with a dual-valve / electronically controlled thermostat housing into a one-piece die-cast housing. This structure eliminates cumbersome hose connections and external sealing surfaces between the water pump and thermostat base, fundamentally reducing coolant leakage risk caused by seal ring aging. |
| Silicon-Carbide Mechanical Face Seal for Zero Leakage | The water pump shaft incorporates a high-specification silicon carbide (SiC) and ceramic carbon sealing face combination mechanical seal, featuring extremely high abrasion resistance and crystallization resistance. It withstands long-term erosion from high-temperature coolant and suspended impurities, ensuring no shaft seal leakage and longer service life under extreme oil / water pressure. |
| Precision-Calibrated Wax Element / Map-Controlled Thermostat | The integrated thermostat valve undergoes micron-level travel and temperature calibration, with opening temperature tolerance controlled within ±1.5°C (supporting traditional thermal wax elements or modern ECU-controlled electrically heated valves). It responds agilely to engine cold start and high-load operating condition switching, rapidly cutting off or opening the large circulation loop. |
| CFD-Optimized Impeller Design for High Flow Rates | Utilizes a CFD (computational fluid dynamics) optimized closed or semi-closed composite / alloy impeller. The impeller profile design greatly reduces cavitation and fluid resistance during high-speed rotation, ensuring sufficient coolant flow rate even at low RPM. |
| Heavy-Duty Double-Row Integral Shaft Bearing | Internally uses Schaeffler (INA / FAG) high-quality double-row ball-needle integrated bearings, with built-in high-temperature FKM double-lip seals and long-life grease filling. This bearing withstands high-intensity belt tension and high-speed centrifugal force, preventing early bearing noise or belt misalignment wear. |
Applicable Car Brands & Models
Replacing both components as a combined assembly is best practice for modern engine servicing. In integrated cooling modules, the thermostat housing and water pump share common sealing surfaces and thermal stress. If the water pump fails, the thermostat has likely suffered similar thermal wear, and vice versa. Installing a complete INA assembly prevents secondary failures, avoids double labor costs, and guarantees system-wide availability and reliability.
Common warning indicators include:
Engine Overheating or Temperature Fluctuations: The engine running unusually hot or taking too long to reach normal temperature due to a stuck thermostat or eroded pump impeller.
Coolant Leakage & Low Coolant Warning: Puddles of coolant under the front of the vehicle or crusty residue around the water pump housing/seals.
Grinding or Whining Noise: Loud bearing chatter coming from the water pump pulley area caused by worn internal bearings.
Check Engine Light (CEL): Diagnostic fault codes related to thermal management (e.g., P0128 for coolant temperature below thermostat regulating threshold).
Yes, absolutely. Flushing the cooling system with clean water or an approved system flush before installation removes old scale, rust, and contaminated debris that could scratch the new mechanical face seals or cause the new thermostat valve to stick open/closed. Always refill with manufacturer-approved coolant.
Each INA Water Pump with Thermostat Assembly is wrapped in anti-corrosion protective film and fitted with protective caps over all hose ports and electrical connectors. The unit is securely held inside a heavy-duty, reinforced Schaeffler INA branded carton with custom foam supports. Export shipments are master-boxed and palletized with moisture-proof stretch wrap for international sea or air transport.
