Description

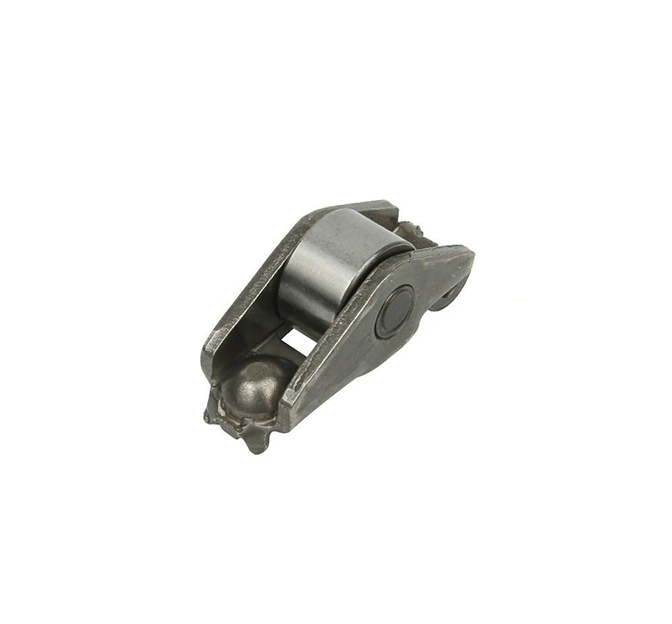

Engineered by Schaeffler Group, the INA Engine Valve Roller Rocker Arm Cam Follower provides a high-precision, low-friction dynamic link between the camshaft lobes and the valve actuation assembly (or high-pressure fuel pump plunger). Designed to eliminate sliding friction in modern overhead camshaft (OHC/DOHC) engines, this precision cam follower incorporates an ultra-durable needle bearing roller. Operating with minimum rolling resistance, it ensures exact valve lift timing, reduces parasitic powertrain drag, and protects the camshaft from premature scuffing and lobe wiping. Manufactured from cold-formed micro-alloy steel with a hardened contact profile, each INA cam follower is built to handle severe thermal cycles, high spring loads, and rapid acceleration. It serves as an essential OE-grade replacement part for machine shops, engine reconditioners, and auto parts distributors looking to eliminate valvetrain chatter, prevent misfires, and restore factory engine performance.
Technical Parameters
| Category | Specifications & Technical Details |
| Precision Needle Bearing Roller for Ultra-Low Rolling Drag | The core position of the cam follower incorporates a roller mechanism composed of high-hardness needle rollers and a cage. It converts traditional sliding friction into rolling friction, reducing friction power loss by 60%–80%, making intake and exhaust response smoother and more agile across the entire engine RPM range. |
| Cold-Formed Alloy Steel Body with High Impact Strength | The follower body is manufactured from micro-alloy steel through precision cold-forming or hot forging processes, with continuous and complete internal metal grain flow. After deep carburizing and quenching, it possesses extremely high bending rigidity, easily withstanding continuous impact forces generated by valve springs and high-pressure fuel pumps at high RPM. |
| Ra ≤ 0.15 μm Surface Precision | Both the roller outer circumference and internal support pin undergo micron-level super-finishing, achieving surface roughness of Ra ≤ 0.15 μm. Under minimal oil lubrication, a complete hydrodynamic oil film is instantly established, eliminating scoring and surface pitting between the cam lobe and follower. |
| Targeted Internal Lubrication Channel | Precision-drilled directional oil injection channels are designed inside the follower body. Utilizing high-pressure oil delivered through the hydraulic lifter, they continuously spray cooling oil film onto the needle bearing cavity and cam contact surface, effectively carrying away heat generated by high-load friction and preventing bearing seizure under high temperatures. |
| Hardened Pin Anchor & Anti-Displacement Lock Mechanism | The center pin supporting the roller undergoes high-frequency induction hardening, with high-strength precision riveting applied at both ends. This ensures the pin does not shift laterally and needle rollers do not detach under prolonged high-frequency vibration, completely eliminating hidden risks of valvetrain damage in high-mileage engines. |
Applicable Car Brands & Models
The cam follower acts as an intermediate transfer component between the rotating camshaft lobe and the engine valve (or high-pressure fuel pump plunger). Its primary role is to convert rotational motion into linear motion while using an internal needle bearing roller to minimize friction, heat, and wear on the valvetrain.
Common symptoms of a failing cam follower include:
Ticking or Tapping Noise: Metallic ticking coming from under the valve cover due to loose tolerances or needle bearing failure.
Engine Misfires & Power Loss: Misfire fault codes (e.g., P0300-P0304) caused by insufficient or irregular valve lift.
Camshaft Lobe Wear: Deep grooves or scoring on the camshaft lobes resulting from a seized follower roller.
Fuel Pressure Faults (if driving HPFP): Diagnostic codes related to low fuel rail pressure (e.g., P0087) if the cam follower actuating the high-pressure fuel pump wears through.
While replacing a single damaged cam follower is possible, service technicians strongly recommend replacing them as a complete set (along with the hydraulic lifters). If one follower has failed due to mileage or oil starvation, the remaining followers have endured identical stress and are likely near the end of their service life.
Each INA Engine Valve Roller Rocker Arm Cam Follower is treated with anti-rust VCI oil and sealed in moisture-proof plastic film. B2B export orders are packed in original INA unit cartons, grouped into sturdy master boxes, and fully palletized with stretch wrapping for secure international transportation.
