Description

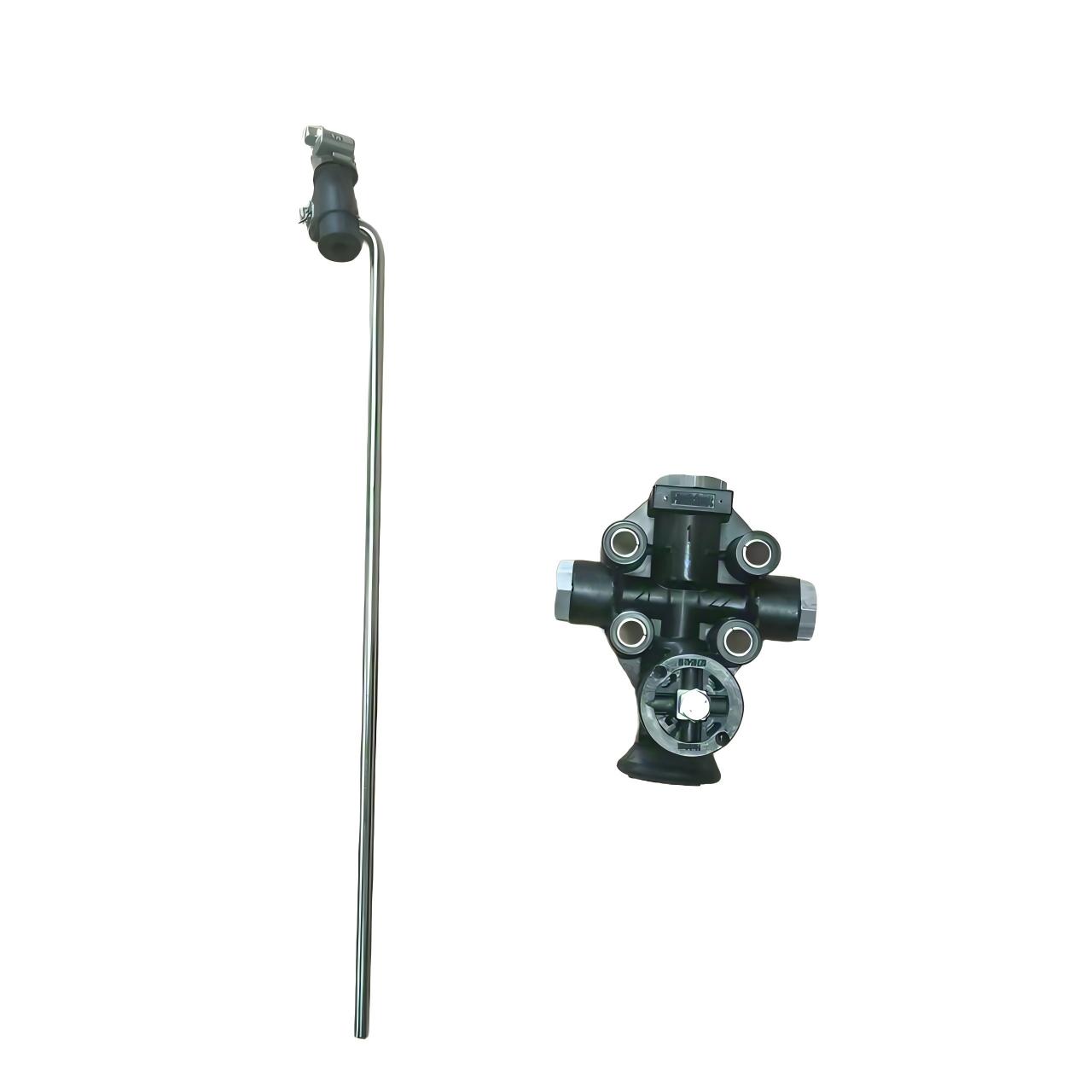

Maintain automatic chassis ride height and preserve ideal axle suspension geometry across your commercial fleet with the genuine Commercial Vehicle Air Suspension Height Control Valve & Linkage Kit. Engineered specifically for heavy-duty commercial truck frame rails, air suspension drive axles, passenger transit coaches, and multi-axle freight trailers, this OE-grade leveling valve kit automatically inflates or exhausts suspension air bags in response to dynamic payload changes. Frozen valve spools, cracked linkage joints, damaged rubber O-rings, or lever arm wear cause uneven chassis tilting, premature tire wear, dangerous drive axle misalignment, and severe trailer bounce. This original height control valve kit solves those suspension leveling failures directly. It features high-precision aluminum alloy valve body, adjustable stainless steel linkage rods, oil-resistant EPDM seals, and pressure-balanced intake/exhaust ports to deliver rapid height correction, zero air leakage, and uncompromised fleet stability in demanding transport operations.
Technical Parameters
| Category | Specifications & Technical Details |
| Precision Dual-Direction Intake & Exhaust Valve Spool | We precision-grind a pneumatic balance structure inside the spool. It sensitively reads body height changes. Then it precisely controls air spring inflation and exhaust to achieve micron-level dynamic height correction. |
| Adjustable Stainless Linkage Rod & Ball Joints | We build the linkage rod from high-strength anti-corrosion stainless steel. It comes with a self-adjusting length thread and a flexible dust-booted ball joint. As a result, the rod stays attached and unbent even under severe chassis vibration. |
| Corrosion-Resistant Anodized Aluminum Valve Body | We die-cast the main valve housing from aluminum alloy and apply hard anodizing. This effectively resists chassis road salt spray, mud wash, and diesel / oil contamination. Moreover, it greatly extends air-tightness service life. |
| Low-Temperature Resistant EPDM/FKM Elastomer Seals | We manufacture internal seals from specialty low-freezing-point FKM or EPDM. They withstand extreme ambient temperatures from -40°C to 80°C. Consequently, they completely eliminate micro air leaks in the chassis air circuit. |
| Integrated Deadband & Pneumatic Delay Feature | We build in a micro pneumatic delay passage. It effectively filters the momentary bump signals when the vehicle passes potholes or speed bumps at speed. Therefore, it prevents the spool from frequent ineffective action that wastes reservoir compressed air. |
Applicable Car Brands & Models
Common warning symptoms include:
Uneven Chassis Ride Height: One side of the truck or trailer sits noticeably lower or higher than the other, causing frame tilting.
Air Suspension Fails to Inflate or Deflate: Suspension air bags remain completely deflated or stay over-inflated at maximum pressure regardless of vehicle load.
Continuous Air Leaking Hissing: Pressurized air continuously exhausts from the valve vent port while the truck is parked.
Severe Vehicle Bounce and Harsh Ride: The suspension loses dampening effectiveness due to incorrect air pressure inside the air springs.
Linkage failures are typically caused by road debris impact snapping the plastic/metal connecting rods, ball joints rusting and seizing from salt water exposure, or improper initial installation length stretching the joints past their operating limit.
Yes. Adjusting the linkage rod length changes the neutral reference point of the valve lever. Shortening or lengthening the rod shifts the valve spool, raising or lowering the frame ride height. Mechanics must follow OEM specifications to maintain proper driveline U-joint angles.
Our 1-year warranty covers all internal valve spool sticking, housing casting cracks, elastomer seal leakage, linkage rod breakage, and non-artificial manufacturing defects under normal operating conditions. If a kit fails within 12 months, we provide prompt replacement or warranty processing upon inspection.
