Description

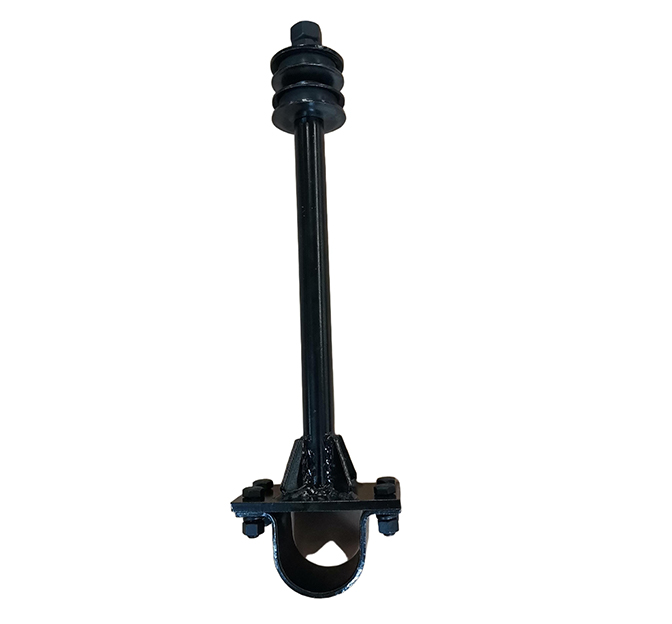

Eliminate body roll and restore cornering stability with the Heavy Duty Stabilizer Sway Bar Link Assembly. Engineered to connect the vehicle’s stabilizer bar directly to the control arm or strut, this robust link transfers lateral suspension forces to keep your tires flat on the road during sharp turns. Potholes, heavy cargo loads, and aggressive cornering eventually wear out internal ball joints and crack rubber bushings, causing annoying rattling noises, loose handling, and excessive body sway. This heavy-duty replacement assembly solves those issues directly. It utilizes high-strength steel rods, heavy-load ball joints, and high-durometer bushings to deliver razor-sharp stability, eliminate suspension clunks, and withstand severe road abuse.
Technical Parameters
| Category | Specifications & Technical Details |
| High-Strength Alloy Steel Solid/Thick-Wall Rod Body | We manufacture the rod body from high-strength structural steel through integral forming or thick-wall tubing. It delivers extremely high tensile and compressive yield strength, never bending or fracturing under high-intensity cornering and harsh road conditions. |
| Induction-Hardened Ball Stud & Low-Friction Socket | We high-frequency induction harden and micron-level polish the ball stud surface, and pair it with a high-density wear-resistant polymer bushing. This combination achieves smooth spherical rotation, completely eliminating suspension noise and play. |
| High-Resilience Oil-Resistant Polyurethane/Rubber Bushings | We embed high-hardness, anti-aging composite rubber or polyurethane bushings into both mounting holes. They effectively absorb high-frequency micro-vibrations while providing excellent lateral shear rigidity. |
| Tear-Resistant All-Weather Weatherproof Dust Boot | The ball joint features a specialty neoprene dust boot. It offers strong ozone resistance, salt spray resistance, and high-low temperature resistance (-40°C to +120°C), preventing mud and sand intrusion. |
| Industrial-Grade Electrophoretic Anti-Corrosion Surface Coating | The metal rod surface carries a multi-layer electrophoretic coating (E-Coating) or zinc plating. This fully resists peeling and structural rust caused by de-icing salt, rain, and road debris impact. |
Applicable Car Brands & Models
Common warning symptoms include:
Clunking or Rattling Noises: A sharp metallic clunk or knocking sound coming from the wheel wells when driving over bumps, potholes, or rough pavement.
Excessive Body Roll (Swaying): The vehicle feels loose, tips heavily, or leans excessively to one side when negotiating sharp turns or highway off-ramps.
Loose or Unresponsive Handling: The steering feels vague or wandering, lacking the tight road feel during cornering.
Visible Damage or Torn Boots: Split rubber dust boots, grease leakage, or obvious bending on the sway bar link rod during visual inspection.
While the vehicle remains drivable for a short distance, it is not recommended. A broken sway bar link significantly increases body roll during emergency maneuvers, reducing tire contact patch and overall vehicle stability.
Yes, absolutely. Sway bar links experience identical road wear and environmental aging. If one side fails, the other side is typically close behind. Replacing them in axle pairs ensures balanced suspension performance and symmetrical handling.
Each sway bar link assembly is treated with anti-rust inhibitor, fitted with protective plastic caps over threaded studs, and packed securely inside a reinforced corrugated box to prevent thread damage and bending during global transport.
