Description

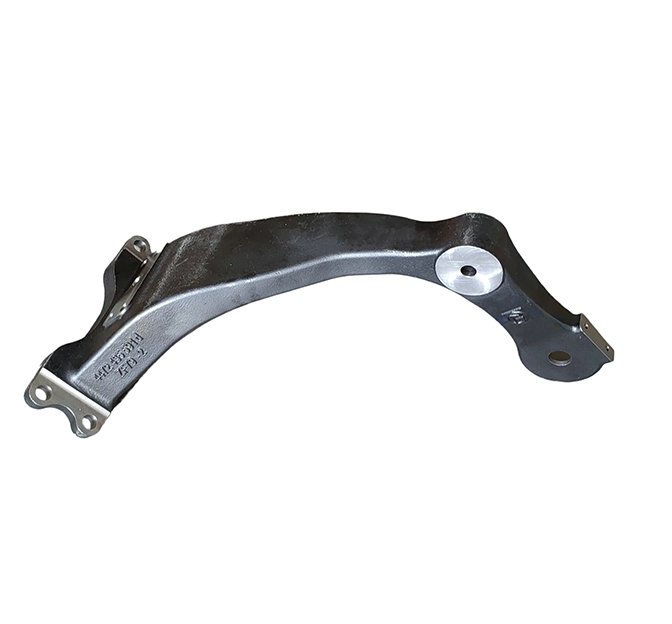

Restore rigid axle alignment and absorb severe road shocks with the Heavy Duty Truck Suspension Control Arm Bracket. Engineered for punishing heavy commercial transport, this robust mounting bracket anchors the suspension control arm or torque rod securely to the truck frame, maintaining proper axle geometry under extreme load transfers. Constant heavy payloads, high-torque braking, and unpaved job sites eventually fatigue factory brackets, causing metal cracking, bolt hole elongation, and dangerous axle shifting. This heavy-duty replacement bracket solves those issues directly. It utilizes high-strength structural steel, precision robotic welding, and heavy-gauge reinforcement plates to deliver rock-solid chassis stability, eliminate structural flexing, and withstand severe commercial abuse.
Technical Parameters
| Category | Specifications & Technical Details |
| High-Strength Structural Steel & Heavy-Gauge Forming | We form high-strength micro-alloy structural steel through heavy hydraulic press die forging or thick-gauge cold stamping. The bracket delivers extremely high bending yield strength and impact load resistance, never deforming under heavy-load compression. |
| Deep-Penetration Robotic Welding & Stress Relief | We join core seams using automated deep-penetration CO₂ gas shielded welding or pulsed MIG welding. Post-weld stress relief heat treatment completely eliminates cracking under high-frequency alternating loads. |
| Micron-Tolerance CNC Bored Mounting & Pivot Holes | We CNC precision-bore the control arm pivot holes and frame bolt holes. This ensures 100% tight fit with OEM rubber bushings and locating bolts, eliminating structural play. |
| Industrial Multi-Layer Electrophoretic & Anti-Corrosion Coating | The surface carries a high-adhesion electrophoretic primer (E-Coating) and a weather-resistant anti-chip topcoat. This combination fully resists peeling and structural rust caused by de-icing salt, mud, rain, and road debris impact. |
| FEA-Optimized Stress-Distribution Rib Topology | We use modern computer finite element analysis (FEA) to design the reinforcement rib topology. This scientifically distributes shear forces in key stress concentration zones, multiplying bracket fatigue life. |
Applicable Car Brands & Models
Common warning symptoms include:
Clunking or Banging Noises: A sharp metallic clunk heard from the undercarriage when accelerating, braking, or driving over bumps due to loose or cracked brackets.
Visible Metal Cracks or Deformation: Physical tearing, stress fractures, or visible bending observed on the bracket body during routine maintenance checks.
Elongated Bolt Holes: Worn, ovalized, or enlarged mounting holes that allow control arm bolts to shift and cause axle misalignment.
Vehicle Pulling or Improper Wheel Alignment: The truck drifts or fails to hold a proper alignment due to shifting suspension mounting points.
Temporary field repairs using welding are generally discouraged for heavy-duty structural brackets. Because these brackets bear massive dynamic towing and braking forces, welding over fatigued metal without proper heat treatment often leads to immediate re-fracture. Complete replacement is the safest, most reliable solution.
Yes, absolutely. Old mounting bolts stretch under heavy torque and road stress, while old rubber bushings lose elasticity. Installing fresh high-tensile hardware and new bushings alongside the replacement bracket ensures a secure, rigid chassis connection.
Each suspension bracket is treated with anti-rust inhibitor, wrapped in heavy-duty protective barrier film, fitted with plastic edge protectors over bolt holes, and packed securely inside a reinforced industrial corrugated box to prevent impact damage during global freight transit.
