Description

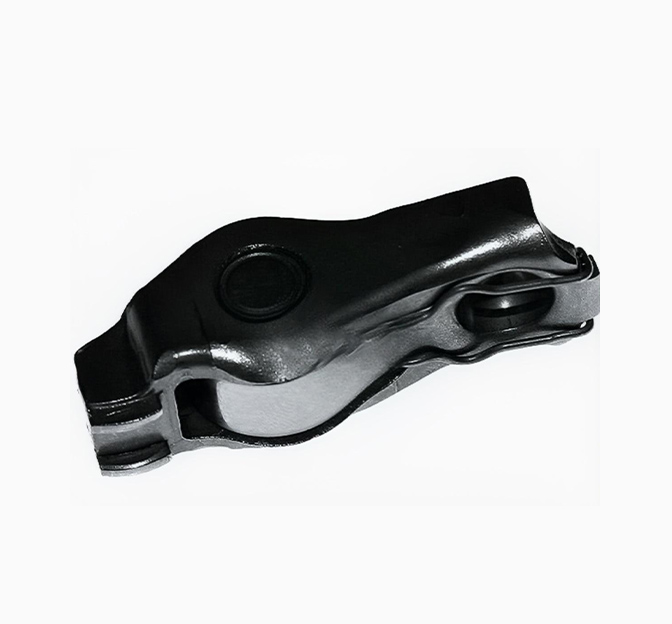

Engineered by Schaeffler Group (INA), this Engine Valve Roller Rocker Arm Cam Follower is a direct OE replacement component designed specifically for BMW overhead camshaft (OHC/DOHC) and Valvetronic engine architectures. Serving as the primary low-friction dynamic bridge between the camshaft lobes and valve actuation assemblies (or high-pressure fuel pump plungers), this high-precision cam follower integrates an ultra-durable needle bearing roller. By substituting sliding friction with minimal rolling resistance, it ensures crisp, accurate valve timing, protects sensitive camshaft lobes from premature scuffing, and optimizes power transfer across all RPM ranges. Precision cold-formed from micro-alloy steel with a hardened contact profile, each INA follower for BMW is manufactured to exact European OE tolerances to withstand continuous high thermal cycles, stiff spring loads, and rapid acceleration. It is an indispensable part for automotive repair shops, engine rebuilders, and auto parts distributors servicing N20, N55, B48, B58, and S55 engine platforms.
Technical Parameters
| Category | Specifications & Technical Details |
| BMW Valvetronic-Grade Low-Friction Needle Bearing | The roller incorporates a precision array of small-diameter needle roller bearings internally, specifically designed for BMW Valvetronic valveless variable valve lift systems. It converts sliding friction during valve actuation into extremely low-resistance rolling friction, greatly reducing valvetrain friction loss and ensuring rapid, jam-free valve response at micron-level lift. |
| Cold-Formed High-Strength Micro-Alloy Steel Body | The follower body is manufactured from micro-alloy steel through precision cold-forming technology, with continuous and unbroken internal metal grain flow. After deep carburizing and quenching, it possesses extremely high bending rigidity and fatigue limit, easily handling the high RPM and high valve spring loads of BMW twin-turbocharged engines. |
| Ra ≤ 0.15 μm Super-Finished Contact Profile | Both the roller outer circumference and center pin undergo micron-level super-finishing, achieving surface roughness of Ra ≤ 0.15 μm. Under engine oil lubrication, a uniform hydrodynamic oil film is rapidly established, completely preventing scuffing, scoring, and early pitting on the camshaft lobe. |
| Targeted Internal Oil Jet Channel | The body features precision-drilled internal directional oil jet channels that precisely interface with BMW hydraulic valve adjusters (HVA). High-pressure oil continuously sprays a cooling oil film onto the internal needle bearing and external cam contact surface, rapidly carrying away heat generated under high-load operation and preventing bearing burning or seizure due to high temperatures. |
| BMW OE Fitment & Micron-Level Tolerance Matching | Designed strictly to BMW OEM powertrain specifications, including high-strength riveted anti-displacement structures at both ends of the center pin. All physical dimensional tolerances are controlled at micron level, ensuring plug-and-play compatibility with BMW OEM camshafts, valve lifters, and high-pressure fuel pump rocker arms without secondary machining adjustments. |
Applicable Car Brands & Models
BMW’s Valvetronic system regulates engine air intake directly through variable valve lift without a conventional throttle body. A worn or imprecise cam follower will introduce mechanical clearance issues, disrupting valve timing and lift accuracy. Using an original-equipment quality INA follower ensures precise movement and prevents rough idling, misfires, or Valvetronic calibration faults.
Common warning signs in BMW vehicles include:
Ticking/Rattling Noise: A distinct ticking sound under the valve cover, especially noticeable during cold starts.
Driveway/Engine Misfires: Misfire diagnostic codes (e.g., P0300, P0301-P0306) caused by unequal valve displacement.
Valvetronic System Faults: Error codes related to Valvetronic position mismatch or servomotor resistance.
Fuel Rail Pressure Codes (HPFP location): Fuel starvation or low fuel pressure codes (e.g., 11A002 or P0087) if the follower actuating the high-pressure fuel pump wears down.
Yes. INA (a key brand of the Schaeffler Group) is a primary tier-1 OEM supplier of valvetrain components—including roller rocker arms, hydraulic lifters, and camshaft timing systems—to BMW. Purchasing an INA cam follower provides original factory quality and specifications.
Yes, it is strongly recommended to replace the entire set of cam followers (along with the hydraulic element/lifters) during major repairs or valve cover overhauls. Since all followers experience similar thermal and friction stress over time, replacing only a single damaged piece leaves older, worn components that could fail prematurely later.
