Description

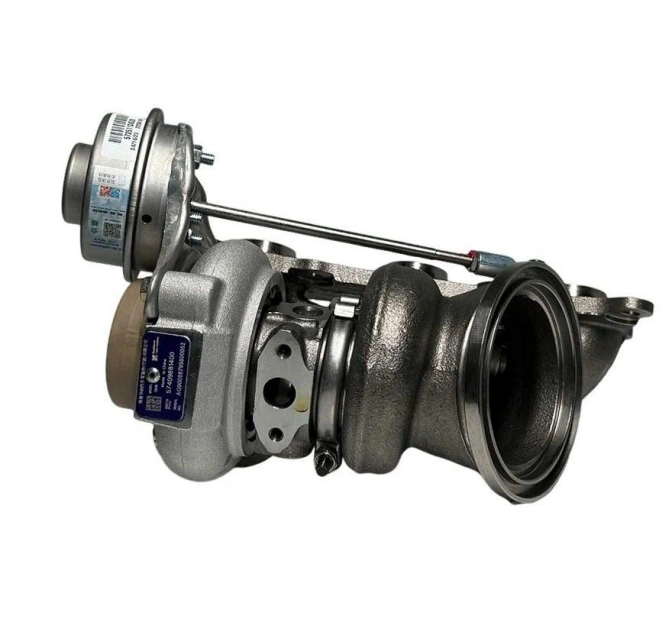

Engineered in close technical collaboration with BMW powertrain specifications, the BorgWarner Turbocharger for BMW delivers factory-grade performance, high thermal efficiency, and immediate throttle responsiveness. Modern BMW engines—such as the widely acclaimed N20, N55, B48, and B58 platforms—rely heavily on precise boost delivery to achieve their characteristic linear power delivery and high torque curves. Utilizing advanced TwinScroll technology or optimized single-scroll designs, this turbocharger separates exhaust pulses to minimize exhaust backpressure and maximize turbine energy recovery at lower engine RPMs. Featuring high-precision milled billet or precision-cast compressor wheels, high-nickel alloy turbine housings capable of enduring extreme exhaust temperatures, and integrated electronic wastegates, it seamlessly interfaces with BMW’s Digital Motor Electronics (DME). Replacing a worn or damaged unit with a genuine BorgWarner assembly restores original engine horsepower, eliminates boost leaks, resolves oil-consumption issues, and ensures full compliance with global tailpipe emissions regulations—making it a premier replacement choice for BMW specialists, wholesale automotive importers, and repair facilities globally.
Technical Parameters
| Category | Specifications & Technical Details |
| TwinScroll Turbine Housing Architecture | Specification: Independent dual-scroll exhaust gas inlet flow channel design, matched to BMW cylinder block alternating exhaust pulses (cylinders 1-4 and 2-3 routed separately) Technical Analysis: Completely eliminates and counteracts exhaust scavenging interference between adjacent cylinders. Turbo boost builds at extremely low RPM of 1,250 RPM, greatly diminishing turbo lag and achieving smooth response comparable to a large-displacement naturally aspirated engine. |
| Forged Milled Billet Compressor Wheel | Specification: 5-axis CNC forged aluminum milled wheel (Extended Tip Technology). Maximum withstand speed ≥ 210,000 rpm, maximum pressure ratio PR ≥ 2.8 Technical Analysis: Compared to traditional cast wheels, forged aluminum material offers more uniform density, thinner blades, and higher strength — significantly reducing rotational inertia while broadening the high-efficiency operating range of the compressor map. |
| High-Nickel Austenitic Cast Steel Housing (Tmax) | Specification: 1.4837 / D5S grade high-nickel austenitic cast steel housing. Continuous operating thermal limit up to 1,050°C Technical Analysis: Perfectly adapts to the high-temperature exhaust gas generated by BMW Valvetronic continuously variable valve and high-compression direct injection engines. Effectively prevents housing thermal stress cracking or internal flow channel deformation during prolonged high-load driving. |
| DME-Integrated Electronic Wastegate Actuator | Specification: High-speed stepper motor / electronic actuator. Repeat positioning accuracy ≤ ±0.2 mm, full-open to full-close response speed < 80 ms Technical Analysis: The sensor directly interfaces with the BMW DME main control computer. Real-time adjustment of the bypass valve position according to driving modes (Eco Pro, Comfort, Sport+) achieves precise overboost protection and ultra-low pumping loss during high-speed cruising. |
| Journal Bearing & Micro-VSR Balancing Standard | Specification: Features a copper-based fully floating journal bearing paired with a thickened 360° thrust bearing; factory-tested via VSR dynamic balancing at speeds up to 200,000 rpm, with an imbalance level below 0.4 g·mm Technical Analysis: Extremely low unbalance eliminates high-frequency whine and axial runout during high-speed operation. Dual M-Type piston ring seals block oil from seeping into the BMW water-cooled intercooler and exhaust catalytic converter. |
Applicable Car Brands & Models
Common failure symptoms on BMW vehicles include a noticeable “whistling” or “dentist drill” noise upon acceleration, significant boost pressure loss accompanied by a “Drivetrain Malfunction” warning on the iDrive screen, blue exhaust smoke (oil burning through turbo seals), high oil consumption, and OBD-II codes such as 120308 (Boost pressure control, plausibility: Pressure too low) or P0299.
A genuine BorgWarner turbocharger built to BMW specifications is a direct bolt-on OEM replacement. The engine ECU (DME) does not require custom software tuning. However, a diagnostic scan tool (such as ISTA/D) must be used to perform an “Electronic Wastegate Actuator (EWGA) Adaptation/Learned Values Reset” to ensure perfect wastegate position sync with the DME.
To safeguard the new turbocharger:
1.Replace all single-use stretch bolts, manifold gaskets, and crush washers.
2.Replace the turbo oil feed line and oil return line (BMW oil feed lines are prone to internal carbon blockage).
3.Change the engine oil and oil filter.
4.Manually prime the turbo oil port with clean engine oil before starting the engine for the first time.
Because these are high-value precision assemblies, wholesale export MOQs start from 2 to 5 units per shipment. In-stock units can be dispatched within 3 to 5 business days, while bulk warehouse container orders typically require 15 to 30 days depending on stock replenishment schedules.
